Electronics | Definition, Circuit Concepts & Applications

Electronics is a fascinating and essential field that forms the backbone of modern technology, influencing everything from communication systems to medical devices. At its core, electronics involves the study and application of electrical circuits and components, enabling the manipulation and control of electric currents. This chapter delves into the fundamental concepts of electronics, including the definition of electronics itself, the intricacies of circuit design, and the various components that make up electronic systems. Understanding these principles is crucial, as they not only provide theoretical knowledge but also have significant practical applications in our daily lives. As we explore the world of electronics, we will uncover how these concepts interconnect to create the devices we rely on, making it a vital area of study for anyone interested in the technological advancements shaping our future. Whether you're looking to grasp the basics of circuit definitions in electronics or seeking to understand more complex systems, this chapter will serve as your guide into the electrifying world of electronics.

Table of Contents

  • Band Theory of Solids
  • Types of Solids Based on Band Theory
  • Semiconductors and Their Types
  • Doping and Its Types
  • Diode and PN Junction
  • Biasing of Diodes
  • Cut-in Voltage and Its Importance
  • Rectification and Its Types
  • Applications of Diodes in Electronics
  • Conclusion on Electronics Concepts

Definition

Electronics is a branch of physics and engineering that deals with the study and application of electrical circuits, devices, and systems that utilize the flow of electrons to perform various functions. This field encompasses a wide range of components, including semiconductors, diodes, and transistors, which are fundamental in the design of circuits for communication, computation, and control systems. The principles of electronics are crucial for understanding how devices like computers, smartphones, and medical equipment operate, making it an essential area of study in modern technology. Key concepts in electronics include the behavior of electrical components, circuit design, and the manipulation of electrical signals to achieve desired outcomes.

Diagram of a full wave rectifier circuit illustrating the current flow through four diodes converting AC input to DC output.
A detailed diagram of a full wave rectifier circuit using four diodes (D1, D2, D3, D4) to convert alternating current (AC) input into direct current (DC) output. The arrows indicate the direction of current flow through each diode, demonstrating how the circuit functions in both half cycles of input voltage.

Band Theory of Solids

The Band Theory of Solids is a cornerstone concept in the field of electronics, providing crucial insights into how electrons behave in solid materials. Understanding this theory is essential for anyone interested in the workings of electronic devices and circuits. Let’s break it down!

What is Band Theory? 🤔

At its core, the band theory describes how electrons in a solid occupy various energy levels that group into bands. Here are the key components:

  • Valence Band: This band is filled with electrons and represents the highest range of energy levels that electrons can occupy at absolute zero temperature.
  • Conduction Band: Typically empty, this band is where electrons can move freely, contributing to electrical conductivity.
  • Forbidden Energy Gap: The energy difference between the valence band and the conduction band. This gap is crucial in determining the electrical properties of a material.

Classifying Materials Based on Band Theory 🔍

Materials can be classified into three main categories based on their band structure:

  1. Conductors ⚡

    • In conductors, the valence band overlaps with the conduction band.
    • This overlap allows electrons to flow freely, resulting in high electrical conductivity.
    • Examples include metals like copper and aluminum.
  2. Insulators 🚫

    • Insulators possess a large forbidden gap.
    • This gap prevents electrons from jumping to the conduction band, leading to very low conductivity.
    • Common insulators include rubber and glass.
  3. Semiconductors 💡

    • Semiconductors have a narrow band gap.
    • Under certain conditions (like temperature changes or the presence of impurities), electrons can jump from the valence band to the conduction band.
    • This property is crucial for the operation of electronic devices such as diodes and transistors.

Why is Band Theory Important? 🌟

Understanding the band theory of solids is vital for grasping the principles of electronics. It helps in:

  • Designing electronic circuits: Knowing how different materials behave allows engineers to select the right components.
  • Developing new technologies: Innovations in electronics often rely on manipulating the properties of semiconductors.
  • Explaining electrical phenomena: Band theory provides a framework for understanding why certain materials conduct electricity while others do not.

By diving into the band theory, we can better appreciate the intricate dance of electrons that powers our electronic world!

Illustration of semiconductor energy structure showing conduction band, narrow forbidden gap, and valence band.
An illustrated representation of the energy bands in a semiconductor, showcasing the conduction band, narrow forbidden gap, and valence band.

Band Theory of Solids in Electronics

Understanding the band theory of solids is essential in electronics, as it classifies materials into conductors, semiconductors, and insulators based on their band structures and electrical properties.
Type of MaterialBand StructureElectrical ConductivityExamples
ConductorsValence band overlaps with conduction bandHigh conductivityCopper, Silver, Gold
InsulatorsLarge forbidden gap between valence and conduction bandsVery low conductivityRubber, Glass, Wood
SemiconductorsNarrow band gap allowing electron transitionModerate conductivity, increases with temperature or dopingSilicon, Germanium, Gallium Arsenide

Types of Solids Based on Band Theory

Types of Solids Based on Band Theory

Understanding the classification of solids based on band theory is crucial for anyone interested in electronics. This theory helps us comprehend how different materials behave electrically, which is fundamental in designing electronic components and circuits. Let's dive into the three main categories:

1. Conductors ⚡

  • Definition: Conductors are materials that allow the flow of electric current with minimal resistance.
  • Characteristics:
    • Overlapping Bands: In conductors like copper and silver, the valence band (where electrons are normally found) overlaps with the conduction band (where electrons can move freely).
    • Easy Electron Flow: This overlap means that electrons can move easily, making these materials excellent for conducting electricity.
  • Common Uses:
    • Wiring in homes and buildings
    • Components in electronic devices

2. Semiconductors 💡

  • Definition: Semiconductors are materials that have electrical conductivity between that of conductors and insulators.
  • Characteristics:
    • Small Band Gap: Examples include silicon and germanium, which have a small energy gap between the valence and conduction bands.
    • Temperature and Doping: This small gap can be overcome with thermal energy (heat) or by adding impurities (doping), allowing for controlled conductivity.
  • Common Uses:
    • Transistors in computers
    • Diodes in electronic circuits

3. Insulators 🚫

  • Definition: Insulators are materials that resist the flow of electric current.
  • Characteristics:
    • Large Band Gap: Materials like rubber and glass have a significant energy gap between the valence and conduction bands.
    • Poor Conductors: This large gap prevents electrons from moving freely, making them poor conductors of electricity.
  • Common Uses:
    • Coating for electrical wires
    • Components that require isolation from electrical currents

Understanding these classifications is essential for anyone involved in electronics. By knowing how different materials behave, engineers can design more efficient circuits and components that meet specific needs.

Whether you're working on a new gadget or studying the fundamentals of electronics, grasping the concepts of conductors, semiconductors, and insulators will empower you to innovate and create effectively! 🌟

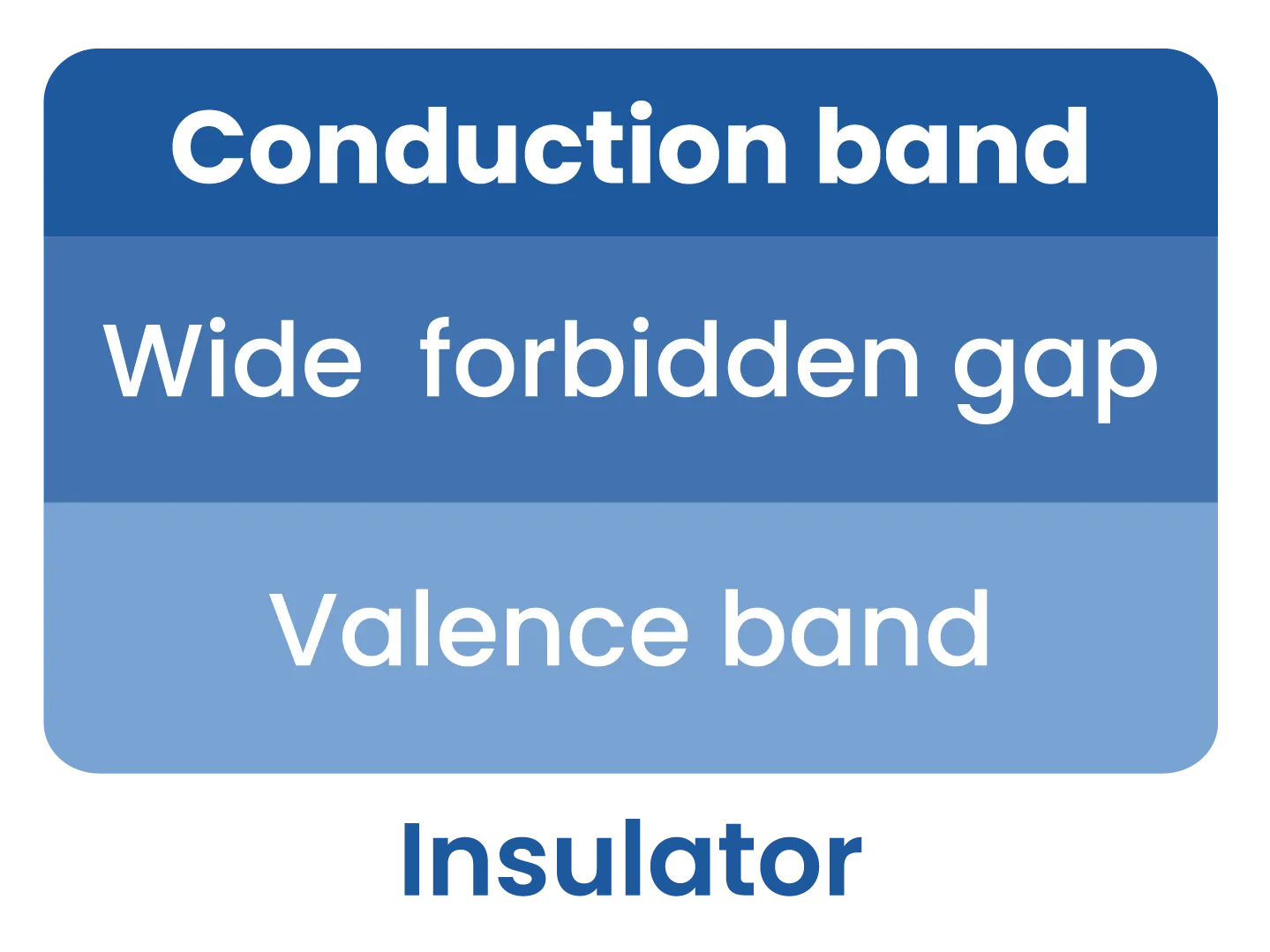

An educational diagram representing the energy band structure of an insulator, depicting the conduction band, wide forbidden gap, and valence band.
Diagram illustrating the energy band structure of an insulator, showing the conduction band, valence band, and a wide forbidden band gap between them.

Classification of Solids Based on Band Theory

This table summarizes the classification of solids in electronics based on band theory, highlighting the distinct characteristics and examples of conductors, semiconductors, and insulators.
Type of SolidCharacteristicsExamples
ConductorsOverlapping valence and conduction bands; allows easy flow of electronsCopper, Silver
SemiconductorsSmall band gap; can conduct electricity when energy is supplied or through dopingSilicon, Germanium
InsulatorsLarge band gap; prevents electron flow, making them poor conductorsRubber, Glass

Semiconductors and Their Types

Semiconductors and Their Types

Semiconductors are fascinating materials that play a crucial role in the world of electronics. They have electrical conductivity that falls between that of conductors (like metals) and insulators (like rubber). This unique property allows them to control electrical current, making them essential for a wide range of electronic devices. 🌟

Types of Semiconductors

There are two main types of semiconductors: intrinsic and extrinsic. Let’s dive deeper into each type!

1. Intrinsic Semiconductors

  • Definition: These are pure forms of semiconductor materials, such as silicon and germanium, that contain no impurities.
  • Conductivity: The conductivity of intrinsic semiconductors increases with temperature. As the temperature rises, more electrons gain enough energy to jump to the conduction band, allowing them to conduct electricity better. 🔥

2. Extrinsic Semiconductors

Extrinsic semiconductors are modified versions of intrinsic semiconductors. They are doped with impurities to enhance their conductivity. There are two subtypes of extrinsic semiconductors:

  • N-type Semiconductors:

    • Doping: These are doped with elements that have more valence electrons, such as phosphorus.
    • Charge Carriers: The addition of these extra electrons increases the number of negative charge carriers, enhancing conductivity. ⚡
  • P-type Semiconductors:

    • Doping: These are doped with elements that have fewer valence electrons, like boron.
    • Charge Carriers: This creates 'holes' in the material, which act as positive charge carriers, allowing for the flow of electricity. 🌈

Importance in Electronics

Understanding the different types of semiconductors is essential for the development of various electronic devices. Here are a few applications:
- Diodes: Allow current to flow in one direction, crucial for rectification.
- Transistors: Act as switches or amplifiers in circuits, forming the backbone of modern electronics.

By grasping the concepts of intrinsic and extrinsic semiconductors, you can better appreciate the electronics definition and how these materials contribute to the functionality of various electronic components.

Whether you're a budding engineer or just curious about how electronics work, knowing about semiconductors is a stepping stone to understanding more complex concepts, such as the circuit definition in electronics.

Embrace the world of semiconductors, and you'll unlock the secrets behind your favorite gadgets! 🚀

Diagram showing n-type silicon semiconductor with lead as donor impurity contributing free electrons.
Illustration of n-type semiconductor doping with lead (Pb) as a donor impurity creating free electrons in silicon (Si) lattice.

Types of Semiconductors in Electronics

This table summarizes the types of semiconductors in electronics, highlighting their characteristics and examples.
TypeDescriptionExamplesConductivity Characteristics
Intrinsic SemiconductorsPure forms of semiconductor materials with no impurities.Silicon (Si), Germanium (Ge)Conductivity increases with temperature due to thermal excitation.
Extrinsic SemiconductorsDoped with impurities to enhance conductivity.N-type (Phosphorus-doped Si), P-type (Boron-doped Si)N-type has extra electrons; P-type has holes acting as positive charge carriers.

Doping and Its Types

Doping and Its Types in Electronics

Doping is a fundamental process in the field of electronics that involves introducing impurities into a semiconductor material to alter its electrical properties. This technique is essential for creating semiconductors that can efficiently conduct electricity, which is crucial for various electronic components.

What is Doping? 🤔

Doping modifies the electrical characteristics of semiconductors, allowing them to perform specific functions in electronic devices. By carefully selecting the type and concentration of dopants, engineers can tailor the properties of semiconductors to meet the needs of different applications.

Types of Doping

There are two primary types of doping in semiconductors:

  1. N-type Doping 🌟

    • Definition: This involves adding pentavalent elements (elements with five valence electrons) to silicon.
    • Common Dopants: Phosphorus (P) is the most widely used dopant in N-type doping.
    • How It Works: The added dopants provide extra electrons, which become available for conduction. This results in an increase in the number of negatively charged carriers (electrons) in the semiconductor.
    • Key Characteristics:
      • Higher electron concentration
      • Improved conductivity
  2. P-type Doping 🔥

    • Definition: This process involves introducing trivalent elements (elements with three valence electrons) into silicon.
    • Common Dopants: Boron (B) is a typical dopant used for P-type doping.
    • How It Works: The trivalent dopants create 'holes' (positive charge carriers) by accepting electrons. These holes facilitate the flow of electricity through the semiconductor.
    • Key Characteristics:
      • Increased hole concentration
      • Enhanced conductivity

Importance of Doping in Electronics

The type and concentration of dopants play a crucial role in determining the electrical characteristics of semiconductors. This makes doping a vital technique in the fabrication of various electronic components, including:

  • Diodes: Devices that allow current to flow in one direction.
  • Transistors: Essential components for amplifying or switching electronic signals.

In summary, understanding doping and its types is key to grasping the fundamentals of electronics. By manipulating the properties of semiconductors through doping, engineers can design and create a wide range of electronic devices that power our modern world.

Diagram illustrating a PN junction with p-type and n-type materials, showing empty holes, free electrons, and the depletion region.
Illustration of a PN junction showing the arrangement of p-type and n-type materials along with empty holes, free electrons, and the depletion region.

Doping in Semiconductors

Overview of Doping Types in Electronics: N-type and P-type doping are essential processes in electronics that modify the electrical properties of semiconductors.
Doping TypeDopant ElementsEffect on ElectronsApplications
N-typePentavalent (e.g., Phosphorus)Provides extra electrons for conductionUsed in diodes and transistors
P-typeTrivalent (e.g., Boron)Creates holes that accept electronsUsed in diodes and transistors

Diode and PN Junction

Understanding Diodes and PN Junctions in Electronics ⚡

A diode is a fundamental component in the world of electronics, acting as a gatekeeper for electrical current. It allows current to flow in only one direction, making it crucial for various applications. But how does it work? Let's break it down!

What is a Diode? 🤔

  • A diode is a semiconductor device formed by joining two types of materials:
    • P-type semiconductor: Contains holes (positive charge carriers).
    • N-type semiconductor: Contains electrons (negative charge carriers).

This combination creates a PN junction, which is the heart of the diode's functionality.

The PN Junction Explained 🔍

At the PN junction, a fascinating process occurs:
- Electron-Hole Recombination: Electrons from the N-side meet holes from the P-side.
- This interaction creates a depletion region, which acts as a barrier to current flow.

Biasing the Diode 🔄

Diodes can operate in two modes based on how they are connected in a circuit:

  1. Forward Bias:

    • When the P-side is connected to the positive terminal of a battery:
      • The depletion region narrows.
      • This allows current to flow freely through the diode! 🌊
  2. Reverse Bias:

    • When the P-side is connected to the negative terminal:
      • The depletion region widens.
      • This prevents current from flowing, effectively blocking it. 🚫

Applications of Diodes in Electronics 💡

Diodes are versatile and play a vital role in various electronic circuits:
- Rectification: Converting alternating current (AC) to direct current (DC).
- Signal Modulation: Altering signals for communication.
- Switching Applications: Controlling the flow of current in circuits.

Understanding diodes and their operation is essential for anyone diving into the world of electronics. They are the building blocks that enable complex electronic systems to function smoothly!

A diagram illustrating a diode in forward bias, highlighting the movement of electrons and holes, and the concept of the depletion region.
Illustration of a diode under forward bias, showing the flow of holes, electrons, and the depletion region.

Diode Characteristics in Electronics

Understanding the characteristics of diodes in electronics, including their behavior under forward and reverse bias conditions.
CharacteristicDescriptionForward BiasReverse Bias
PN JunctionFormed by joining P-type and N-type semiconductors, allowing current flow in one direction.Depletion region narrows, allowing current to flow.Depletion region widens, preventing current flow.
Depletion RegionRegion where electrons and holes recombine, creating a barrier.Allows current flow when narrow.Blocks current flow when wide.
Current FlowDirection of current in a diode.Current flows from P-side to N-side.No current flows from N-side to P-side.
ApplicationsUsed in rectification, signal modulation, and switching.Essential in converting AC to DC.Prevents reverse current in circuits.

Biasing of Diodes

Biasing of Diodes: Understanding the Basics of Electronics ⚡

When diving into the world of electronics, one of the fundamental concepts you'll encounter is biasing. Biasing refers to the method of applying voltage to a diode to control its operation, which is crucial for ensuring that electronic circuits function as intended. Let's break down the two primary types of diode biasing:

1. Forward Bias 🔄

In forward bias mode, the diode is set up to conduct electricity. Here's how it works:

  • The positive terminal of the battery is connected to the P-side (the anode) of the diode.
  • This connection reduces the width of the depletion region, allowing current to flow through the diode.

Key Points about Forward Bias:
- Current Flow: Essential for the diode to conduct electricity.
- Voltage Drop: Typically, a small voltage drop (around 0.7V for silicon diodes) is required for conduction.
- Applications: Used in rectifiers, amplifiers, and other electronic devices.

2. Reverse Bias ❌

In contrast, reverse bias prevents current from flowing through the diode. Here's what happens:

  • The positive terminal is connected to the N-side (the cathode) of the diode.
  • This setup increases the depletion region, effectively blocking current flow.

Key Points about Reverse Bias:
- Current Blocking: Prevents current from passing through the diode.
- High Resistance: The diode behaves like an open circuit.
- Applications: Used in voltage regulation, signal modulation, and protecting circuits from reverse polarity.

Why is Diode Biasing Important? 🤔

Understanding diode biasing is critical for designing circuits that require controlled current flow. Here are some reasons why:

  • Circuit Efficiency: Proper biasing ensures that circuits operate efficiently and effectively.
  • Component Protection: Helps in protecting sensitive components from damage due to incorrect current flow.
  • Signal Integrity: Maintains the integrity of signals in communication systems.

In summary, mastering the concepts of forward and reverse bias is essential for anyone venturing into the field of electronics. Whether you're building a simple circuit or designing complex systems, knowing how to manipulate diode biasing can make all the difference!

Diagram of a PN junction diode showing reverse bias connection with depletion region, electrons, and holes marked.
Illustration of a PN junction diode connected in reverse bias configuration, highlighting the depletion region, electrons, and holes.

Diode Biasing in Electronics

Understanding diode biasing is essential in electronics for controlling current flow in circuits.
Biasing TypeConnectionEffect on Depletion RegionCurrent Flow
Forward BiasPositive terminal to P-sideDecreases widthAllows current to flow
Reverse BiasPositive terminal to N-sideIncreases widthPrevents current flow

Cut-in Voltage and Its Importance

Cut-in Voltage and Its Importance in Electronics ⚡

The cut-in voltage, often referred to as the threshold voltage, is a fundamental concept in the field of electronics. It represents the minimum voltage required to activate a diode, enabling current to flow through it. Understanding this concept is essential for anyone involved in designing or working with electronic circuits.

What is Cut-in Voltage? 🤔

  • The cut-in voltage varies depending on the type of diode:
    • Silicon Diodes: Approximately 0.7 V
    • Germanium Diodes: Around 0.3 V

This difference in cut-in voltage is crucial when selecting diodes for specific applications.

Why is Cut-in Voltage Important? 🔍

Understanding the cut-in voltage is vital for several reasons:

  1. Circuit Design:

    • Knowing the cut-in voltage helps engineers design circuits that operate efficiently. It ensures that the voltage supplied exceeds this threshold, allowing the diode to function correctly.
  2. Current Flow:

    • If the applied voltage is below the cut-in voltage, the diode will not conduct, leading to circuit failure. This is particularly important in applications like:
      • Rectification: Converting AC to DC.
      • Signal Processing: Amplifying or modifying signals.
  3. Efficiency:

    • Properly accounting for the cut-in voltage in circuit design can lead to more efficient systems, reducing energy waste and improving performance.

Practical Applications of Cut-in Voltage 💡

In real-world scenarios, ensuring that the voltage exceeds the cut-in voltage is crucial for the diode's performance. Here are some applications where cut-in voltage plays a key role:

  • Power Supplies: Ensuring stable voltage levels for devices.
  • Signal Diodes: Used in radio frequency applications where signal integrity is paramount.
  • Rectifiers: Essential in power conversion circuits.

By understanding and applying the concept of cut-in voltage, engineers can create more reliable and effective electronic circuits. This knowledge is a cornerstone of the electronics definition and a key component in the circuit definition in electronics.

A circuit diagram showing the AC to DC conversion process with input and output waveforms, highlighting diodes and a transformer.
Diagram illustrating the functioning of an AC to DC converter circuit, showing input and output waveforms along with circuit components.

Cut-in Voltage of Diodes

The table summarizes the cut-in voltage for different types of diodes in electronics, highlighting their significance in circuit design.
Type of DiodeCut-in Voltage (V)Applications
Silicon Diode0.7 VUsed in rectification circuits and signal processing.
Germanium Diode0.3 VCommonly used in low-voltage applications and RF circuits.

Rectification and Its Types

Rectification and Its Types ⚡

Rectification is a crucial process in the field of electronics, where alternating current (AC) is converted into direct current (DC) using diodes. This transformation is essential for powering various electronic devices and circuits. Let’s dive deeper into the types of rectification and their applications!

What is Rectification? 🤔

Rectification refers to the process of converting AC, which flows in both directions, into DC, which flows in only one direction. This is important because most electronic devices require DC to operate efficiently.

Types of Rectification 🔌

There are two primary types of rectification:

  1. Half-Wave Rectification 🌊

    • In this method, only one half of the AC cycle is allowed to pass through the diode.
    • The result is a pulsating DC output.
    • Key Characteristics:
      • Efficiency: Less efficient compared to full-wave rectification.
      • Applications: Commonly used in low-power applications, such as:
        • Battery chargers
        • Simple power supplies
      • Drawback: Produces a lot of ripple, which can affect performance.
  2. Full-Wave Rectification 🌈

    • This method utilizes both halves of the AC cycle, providing a smoother and more efficient DC output.
    • It can be achieved using a bridge rectifier configuration or a center-tapped transformer.
    • Key Characteristics:
      • Efficiency: More efficient than half-wave rectification.
      • Applications: Ideal for high-power applications, such as:
        • Power supplies for computers
        • Industrial equipment
      • Benefit: Produces less ripple, resulting in a more stable output.

Why is Understanding Rectification Important? 🛠️

Understanding rectification is vital for designing power supply circuits in electronic devices. Whether you’re working on a simple project or a complex system, knowing how to convert AC to DC effectively can make a significant difference in performance and reliability.

Related Concepts in Electronics 📚

  • Electronics Definition: The branch of science and technology that deals with the behavior and effects of electrons in semiconductors, conductors, and vacuum.
  • Circuit Definition in Electronics: A closed path through which an electric current flows or may flow.

By grasping the concepts of rectification and its types, you can enhance your knowledge in electronics and improve your circuit designs. Happy learning! 🎉

Diagram illustrating the flow of conventional current in a p-type and n-type semiconductor junction.
Schematic representation of a p-type and n-type semiconductor junction showing current flow.

Types of Rectification in Electronics

Comparison of Half-Wave and Full-Wave Rectification in Electronics
TypeDescriptionEfficiencyApplications
Half-Wave RectificationAllows only one half of the AC cycle to pass, resulting in pulsating DC output.Less efficient, typically used in low-power applications.Used in simple power supply circuits.
Full-Wave RectificationUtilizes both halves of the AC cycle for a smoother DC output, achieved with a bridge rectifier.More efficient, providing a steadier output.Commonly used in power supply circuits for electronic devices.

Applications of Diodes in Electronics

Diodes are fundamental components in the world of electronics, serving a variety of essential functions that enhance circuit performance and reliability. Let’s explore some of the most significant applications of diodes in greater detail:

1. Rectifiers 🔌

Diodes are primarily known for their role as rectifiers. They convert alternating current (AC) to direct current (DC), which is crucial for powering electronic devices. Here’s how they work:
- Half-wave Rectification: Only one half of the AC waveform is allowed to pass, effectively blocking the other half.
- Full-wave Rectification: Both halves of the AC waveform are utilized, providing a smoother DC output.

2. Signal Demodulation 📻

In radio technology, diodes are vital for signal demodulation. They extract audio signals from modulated carriers, allowing us to listen to our favorite stations. The process involves:
- Detection: Diodes detect the amplitude variations in the carrier wave.
- Output: The demodulated audio signal is then amplified for clearer sound.

3. Voltage Regulation ⚡

Zener diodes are a special type of diode used for voltage regulation. They maintain a constant output voltage despite variations in input voltage or load conditions. Key points include:
- Reverse Breakdown: Zener diodes operate in reverse bias, allowing them to maintain a stable voltage.
- Applications: Commonly used in power supplies and voltage reference circuits.

4. Switching Applications 🔄

Diodes are also employed in switching applications within digital circuits. They help control the flow of current, making them essential for:
- Logic Gates: Diodes can create basic logic functions, contributing to circuit design.
- Signal Routing: They direct signals to different paths, enhancing circuit efficiency.

Why Diodes Matter in Electronics 🌟

The versatility of diodes makes them indispensable in modern electronics. Their ability to control current flow efficiently allows for:
- Compact Circuit Design: Smaller and more efficient circuits can be designed.
- Enhanced Functionality: They enable various functionalities that are crucial for electronic devices.

In summary, diodes are not just passive components; they are active players in the realm of electronics, facilitating everything from power conversion to signal processing. Understanding their applications helps in grasping the broader circuit definition in electronics and the intricate workings of electronic devices.

Diagram of a diode featuring the P-N junction with labeled anode and cathode.
Illustration of a diode showing its P-N junction formation, including the anode and cathode connections.

Key Applications of Diodes in Electronics

This table outlines the key applications of diodes in electronics, highlighting their importance in various electronic circuits.
ApplicationDescription
RectifiersUsed in power supplies to convert AC to DC.
Signal DemodulationEmployed in radio receivers to extract audio signals from modulated carriers.
Voltage RegulationZener diodes are used to maintain a constant output voltage.
SwitchingDiodes are used in digital circuits for switching applications.

Conclusion on Electronics Concepts

Understanding the fundamental concepts of electronics is not just important—it's essential! Whether you're a student diving into the world of electronics or a professional honing your skills, grasping these principles will set you up for success. Let's break down some key areas that form the backbone of this exciting field. ⚡️

Key Concepts in Electronics

  1. Band Theory:

    • This theory explains how electrons behave in solids.
    • It helps us understand why materials can be conductors, insulators, or semiconductors.
    • Key takeaway: Band gaps determine the electrical properties of materials.
  2. Semiconductors:

    • Semiconductors are materials that can conduct electricity under certain conditions.
    • They are the building blocks of modern electronics, found in everything from smartphones to solar panels.
    • Types of semiconductors:
      • Intrinsic: Pure form, no impurities.
      • Extrinsic: Doped with other elements to enhance conductivity.
  3. Diodes:

    • Diodes are semiconductor devices that allow current to flow in one direction only.
    • They are crucial for converting alternating current (AC) to direct current (DC).
    • Applications of diodes:
      • Rectifiers in power supplies
      • Signal demodulators in communication devices

The Importance of These Concepts

  • Foundation for Circuit Design:

    • Understanding these concepts is vital for designing and analyzing electronic circuits.
    • A solid grasp of circuit definitions in electronics helps in troubleshooting and innovation.
  • Staying Relevant:

    • As technology evolves, so do the applications of these fundamental concepts.
    • Keeping up with advancements ensures that you remain competitive in the field.

Conclusion

In the rapidly changing landscape of electronics, the principles of band theory, semiconductors, and diodes will only become more significant. By mastering these concepts, you equip yourself with the knowledge necessary to thrive in this dynamic field. So, whether you're studying or working in electronics, remember: staying informed and adaptable is key to your success! 🌟

Diagram of a p-type semiconductor illustrating silicon atoms with a boron acceptor impurity creating a hole.
Illustration of a p-type semiconductor showing silicon (Si) atoms and a boron (B) acceptor impurity that creates a hole.

Fundamental Concepts of Electronics

Overview of Fundamental Concepts in Electronics including Band Theory, Semiconductors, and Diodes.
ConceptDescriptionApplications
Band TheoryDescribes the energy levels of electrons in solids, distinguishing conductors, semiconductors, and insulators.Used in understanding electrical conductivity and material properties.
SemiconductorsMaterials with conductivity between conductors and insulators, crucial for modern electronics.Found in diodes, transistors, and integrated circuits.
DiodesSemiconductor devices that allow current to flow in one direction, used for rectification.Used in power supplies and signal processing.
ApplicationsUtilization of electronics principles in various fields such as communications, computing, and medical devices.Essential for developing new technologies and improving existing systems.

Conclusion

In conclusion, the study of electronics is essential for understanding the fundamental principles that govern modern technology. This chapter has explored key concepts such as the band theory of solids, the properties of semiconductors, and the functioning of diodes, which are critical components in electronic circuits. By grasping the differences between conductors, semiconductors, and insulators, as well as the processes of doping and rectification, students can appreciate the intricate workings of electronic devices. As you continue your journey in electronics, remember that these foundational concepts will not only aid in your academic pursuits but also enhance your practical skills in the field. Embrace the knowledge of electronics, and you will be well-equipped to tackle the challenges of modern technology.

FAQs

Q: What is electronics?

A: Electronics is a branch of physics and engineering that deals with the behavior and movement of electrons in vacuum and matter. It involves the study of electrical circuits, devices, and systems that utilize electric current to perform various functions.

Q: What is a circuit in electronics?

A: A circuit in electronics refers to a closed path through which electric current can flow. It typically consists of various components such as resistors, capacitors, inductors, and power sources, all interconnected to perform specific tasks.

Q: What are the main components of electronics?

A: The main components of electronics include resistors, capacitors, inductors, diodes, transistors, and integrated circuits. These components work together to control and manipulate electric current in various applications.

Q: How do semiconductors function in electronics?

A: Semiconductors are materials that have electrical conductivity between conductors and insulators. They can be modified through doping to create p-type or n-type semiconductors, which are essential for the functioning of electronic components like diodes and transistors.

Q: What is the significance of diodes in electronic circuits?

A: Diodes are semiconductor devices that allow current to flow in one direction only. They are crucial for rectification processes, converting alternating current (AC) to direct current (DC), and are widely used in power supplies and signal processing.

Q: What role do capacitors play in electronics?

A: Capacitors store and release electrical energy in a circuit. They are used for smoothing out voltage fluctuations, filtering signals, and timing applications in various electronic devices.

Q: What is the principle of electromagnetic induction in electronics?

A: Electromagnetic induction is the process by which a changing magnetic field induces an electromotive force (EMF) in a conductor. This principle is fundamental in the operation of transformers, electric generators, and inductors in electronic circuits.

Q: What are the applications of electronics in everyday life?

A: Electronics play a vital role in everyday life, powering devices such as smartphones, computers, televisions, medical equipment, and home appliances. They enable communication, automation, and entertainment, significantly impacting modern society.

Related Physics Topics

  • Thermodynamics | Laws, Heat Transfer & Applications
  • Electromagnetism | Definition, Waves, Induction & Applications
  • Dawn of Modern Physics | Key Concepts, Theories & Applications
  • Nuclear Physics | Definition, Concepts & Applications
  • Electromagnetic Induction | Definition, Faraday's Law, Applications
  • Work and Energy | Definitions, Equations & Applications
  • Circular and Rotational Motion | Concepts, Examples & Differences
  • Atomic Spectra | Definition, Types & Key Concepts
  • Electric Current | Definition, SI Unit, and Key Concepts
  • Electrostatics | Force, Induction & Applications
  • Force and Motion | Dynamics, Kinematics & Laws
  • Waves | Types, Properties, Examples

Important Physics Video Lessons

  • Trick Part 1
  • Trick Part 2
  • Force And Motion (Kinematics)
  • Force And Motion (Dynamics-A)
  • Force And Motion (Dynamics-B)
  • Motion And Force (Projectile Motion)
  • Force And Motion (work sheet)
  • Force & Motion (Distance, Displacement & Uniform/Non-uniform Motion)
  • Force & Motion (Average Velocity, Position-Time & Velocity-Time Graphs)
  • Force & Motion (Newton Law Of Motion, Momentum,Impulse)
  • Force & Motion (Elastic Collision In One Dimension & Projectile Motion)
  • Work, Power And Energy (Work And Its Types)
  • Work, Power And Energy (Energy And Its Types)
  • Work, Power And Energy (Work sheet)
  • Rotational And Circular Motion
  • Projectile And Circular Motion (worksheet)
  • Waves (Simple Harmonic Motion) Part-A
  • Waves (Simple Harmonic Motion) Part-B
  • Waves ( Waves And Its Types)
  • Waves (Sound And Characteristics)

Practice Physics MCQs & Pastpapers

  • Force and Motion
  • Work and Energy
  • Rotational and Circular Motion
  • Waves and Sounds
  • Oscillations
  • Thermodynamics
  • Electrostatics
  • Current Electricity
  • Electromagnetism
  • Electromagnetic Induction
  • Electronics
  • Dawn of Modern Physics
  • Atomic Spectra
  • Nuclear Physics

Watch Physics Live Classes

  • Xll Revision: Numerical Practice
  • Xll Revision: Modern, Nuclear & Atomic Physics
  • XII Revision: Electricity & Magnetism
  • Waves - 2
  • Waves - 1
  • Rotational & Circular Motion - 2
  • Rotational & Circular Motion - 1
  • Work, Energy & Power - II
  • Work, Energy & Power - I
  • Force & Motion - 3
  • Force & Motion - 2
  • Force & Motion - 1
  • Thermodynamics - 2
  • Thermodynamics - 1
  • Introduction to MDCAT Physics
  • Atomic Spectra + Nuclear Physics
  • Modern Physics
  • EM Induction + Electronics
  • Electromagnetic Induction - 2
  • Physics Session 4: All About Numericals (MDCAT Reconduct)
Maqsad logo

© Copyright 2021 Maqsad (Pvt.) Ltd. All Rights Reserved

Maqsad utilizes top-tier educators, media resources, and cutting-edge technology to develop education that is both high in quality and accessible, all while remaining affordable for students.

Google Play button

Download on

Google Play

Chrome button

Sign up

Chrome

Maqsad

MDCATECATBCATClass 9 NotesBlogSitemap

Socials

LinkedInYouTubeFacebookInstagram

Tools

Medical University PredictorMDCAT Aggregate CalculatorO Level Equivalence CalculatorA Level Equivalence Calculator

Our backers

Logo of Speed InvestLogo of Fatima Gobi VenturesLogo of Indus Valley CapitalLogo of Alter Global

Featured in

Bloomberg article featuring MaqsadTechCrunch article featuring MaqsadMenaBytes article featuring Maqsad
